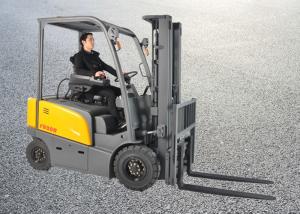

Counterbalanced Warehouse Forklift Trucks , Ac Motor Electric Forklift Truck

Shanghai Reach Industrial Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Counterbalanced Warehouse Forklift Trucks , Ac Motor Electric Forklift Truck

Brand Name : REACH

Model Number : FB20R

Certification : CE,TV

Place of Origin : Ningbo, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 600 units per month

Delivery Time : 20 working days

Packaging Details : Nude

Capacity : 2000kg

lift height : 3000-6200mm

Fork size : 40x120x1070 mm

Battery voltage : 48V /500Ah

Travel speed : 10-11km/h

Lifting speed : 240/260mm/s

Contact Now

Every Move Improve Productivity

Capacity 2000kg electric forklift truck with 4.5m max lift height, which features the perfect combination of productivity and power. This series has a wide range of capacities enable to meet even more of your material handling needs.

Model FB20R
Capacity kg 2000
Load center mm 500
Lifting height mm 3000-6200
Turning radius mm 2100
Travel speed, load/unload Km/h 10/11
Lifting speed, load/unload mm/s 240/260
Gradeability, load/unload % 15/20
Overall length mm 2200
Overall width mm 1130
Lowered mast height mm 2015-2610
Driving motor power kw 8AC
Lifting motor power kw 8.6DC
Battery V/Ah 48/450(500)
Sound level dB(A) 68

Performance that Adds Up

> Improvement of driving bridge structure
> Improvement of battery box structure

> Improvement of battery box structure

> Internal structure arrangement

> Multifunction LCD digital display, provides fast and accurate monitoring truck status.

> International advanced horizontal driving unit

> Low noise

> High power, high torque AC drive motor. Maintenance free, long service life.

> The optional of third safety pedal and dual pedal, offers safety driving , stacking and steering.

> Integral side shift and fork positioner

> The driving motor is a fully enclosed structure with a protective level of IP54, dustproof and moisture proof. It can be used for cold and other bad environment.

> Adjustable silt steering column offers the most comfortable operator position

> Seat with safety belt and arm rest

> An external encoder is used.

> High-friction brake shoes are free of asbestos.

> Multifunction liquid crystal instrument

Counterbalanced Warehouse Forklift Trucks , Ac Motor Electric Forklift Truck

Option:

FB20R Lithium battery

nSafe and reliable

CAN communication is high speed, reliable, real-time and convenient.

nFast charging

The charging efficiency is high, the battery can be full after 2-3 hours charging, can be recharged at any time and can be used at any time you need, like use the meal time to do the charging. It can meet the demand for Multiple shifts work. The traditional lead-acid battery forklift charging time more than 8 hours.

nLong service life

Under normal charging and discharging conditions, the battery can be recycled 4000 times, that is, electric forklifts do not need to replace batteries during the life cycle of it.

nSuit for high or low temperature work environment

In the high and low temperature working environment between -20 ℃and 60 ℃, lithium batteries can still work normally, and there is no need to be equipped with different concentrations of electrolyte at different temperatures. The application field is far greater than the lead-acid battery.

nMaintenance free

The lithium battery is totally enclosed, without manual maintenance. It can save a lot of maintenance cost and save customers' energy and effort.

nSuper strong anti vibration

Modular design has super strong anti vibration performance.

nDustproof and waterproof

System protection level reaches IP56 standard.
