Super Light Warehouse Forklift Trucks For Low Height Stocking Short Distance Transportation

Name: Super Light Warehouse Forklift Trucks For Low Height Stocking Short Distance Transportation
Brand: REACH
Price: 1 USD

China Super Light Warehouse Forklift Trucks For Low Height Stocking Short Distance Transportation wholesale

Brand Name : REACH

Model Number : CDDR12E

Certification : CE, TUV

Place of Origin : Zhejiang, China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 200 sets per month

Delivery Time : 25 - 30 days

Packaging Details : Nude

Capacity : 1200kg

Load center : 600mm

Lifting height : 1600/2500/3000mm

Width overall forks : 570/695mm

Fork dimensions : 60/170/1150(1070)mm

Drive speed, laden/unladen : 5/6km/h

Lift speed, laden/unladen : 0.12/0.22m/s

Lower speed, laden/unladen : 0.14/0.14m/s

Contact Now

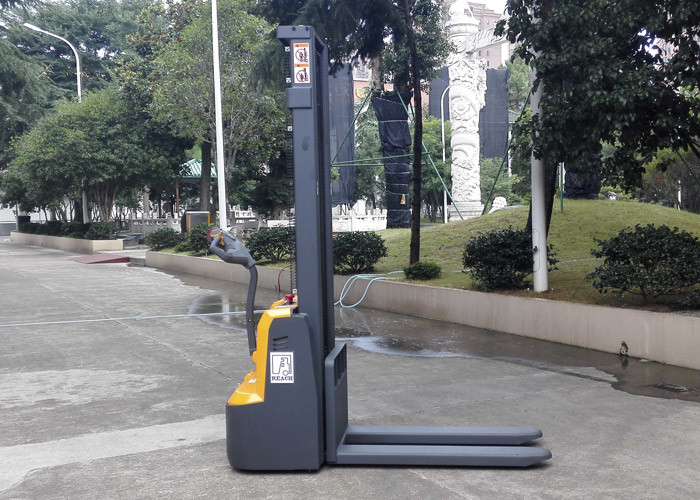

1200kg super light warehouse forklift trucks fot low height stocking short distance transportation

Quick Details:

Model: Warehouse forklift trucks CDDR12E
Capacity: 1200kg
Lift height: 1600/2500/3000mm
Fork dimensions: 60/170/1150(1070)mm
Turning radius: 1365mm

Travelling speed, laden/unladen: 5/6km/h

Lift speed, laden/unladen: 0.12/0.22m/s

Lower speed, laden/unladen: 0.14/0.14m/s
Battery: 24V105Ah

Advantages:

Back cover is integrated type design, easy to assemble and maintain.
Use GEL battery free to maintain.
Built-in charger easy to access tp power supply.
Low gravity design, 4 point design, improve the warehouse forklift trucks stability.
This drive unit have small turning radius, motor and brake is very easy to replace.
Compact design and small dimensions, offer excellent visibility.
The turning radius and aisle width is very small and which is similar with manual stacker.

SPECIFICATIONS
Model		CDDR12E
Load capacity	kg	1200
Load center distance	mm	600
Height, lowered	mm	90
Tyre size, front	mm	195*70
Tyre size, rear	mm	80*70
Additional wheels (dimensions)	mm	150*60
Height, mast lowered	mm	2090/1840/2090
Max. lifting height	mm	1600/2500/3000
Height, mast extended	mm	2090/3060/3560
Height of tiller in drive position min./max.	mm	670/1300
Overall length	mm	1748(1668)
Length to face of forks	mm	598
Overall width	mm	800
Fork dimensions	mm	60/170/1150(1070)
Width overall forks	mm	570/695
Ground clearance, centre of wheelbase	mm	26
Aisle width for pallets 1000*1200 crossways	mm	2218
Aisle width for pallets 800*1200 lengthways	mm	2173
Turning radius	mm	1365
Travel speed, laden/unladen	km/h	5/6
Lift speed, laden/unladen	m/s	0.12/0.22
Lowering speed, laden/unladen	m/s	0.14/0.14
Battery	V/Ah	24/105
Service weight	kg	670

Super Light Warehouse Forklift Trucks For Low Height Stocking Short Distance Transportation
