1000kg Stationary Scissor Lift Table With Max Lift Height 1000mm 1.5kw Power

1000kg stationary lift table with max lift height 1000mm 1.5KW power

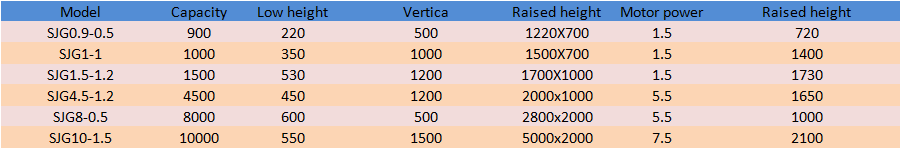

Specification:

Advantages:

The stationary lift tables are stable and widely used goods lifting equipment. It is mainly used in production lines transfering goods between different heights, loading and unloading, lifting for parts assembling. According to different working requirements and conitions different working pallets, drving types, controlling ways and the accessories are availabe

Designed for industrial heavy duty applications(as part of production process, for machine feeding or stacking etc.)
Double acting hydraulic cylinders.
Lifting limit switch.
Alum. table frame protects workers from injury by cutting off power.

Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions;
Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed;
Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst;
Safety clearance between scissors to prevent trapping during operation.
Self lubricating bushings on pivot points;
Meet EN1570 norm and ANSI/ASME safety standard.

Product testing before shipping :

movable lift table

electric lift table

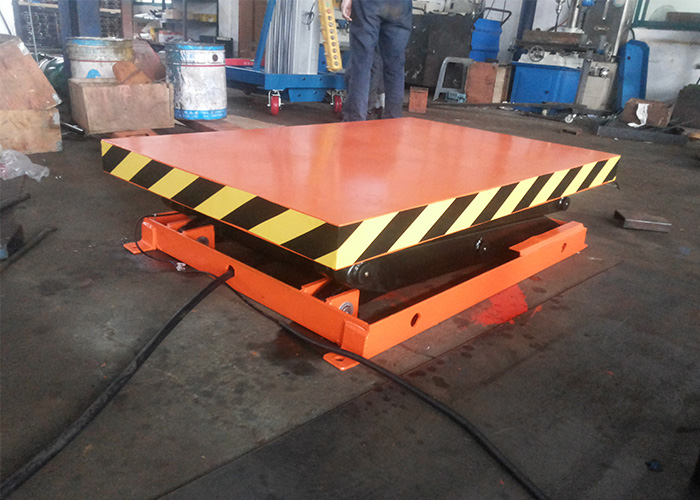

1000kg Stationary Scissor Lift Table
